LS1610L-P02

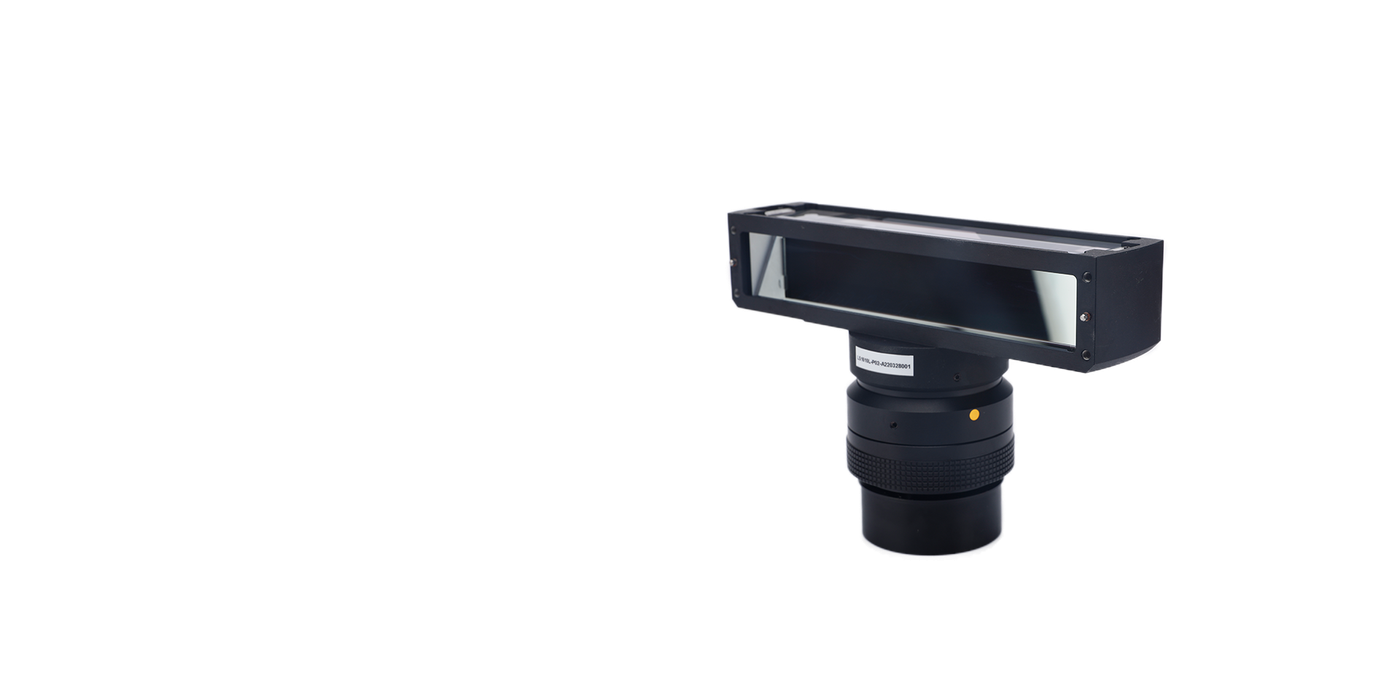

LS1610L-P02 116mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
116 mmFocal Length
0.9-1.2Magnification
V-Mount（φ49）Mount
3.8-16Aperture
115Working Distance
0.0005%Distortion
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of LS1610L-P02.
- MountV-Mount（φ49）
Key Specifications
| Focal Length | 116 mm |
| Magnification | 0.9-1.2 |
| Mount | V-Mount（φ49） |
| Aperture | 3.8-16 |
| Working Distance | 115 |
| Distortion | 0.0005% |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether LS1610L-P02 fits, or recommend a better match.
