LS1207A

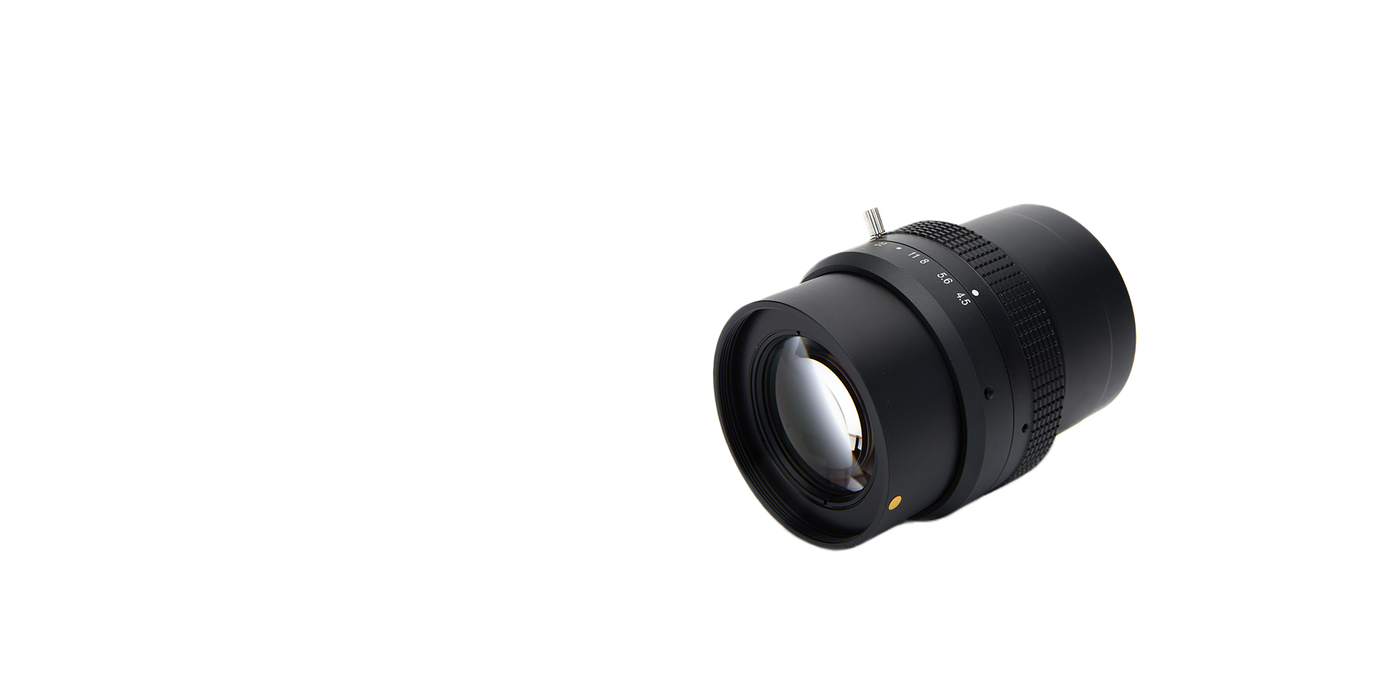

LS1207A 116mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
116 mmFocal Length
0.7-0.85Magnification
V-Mount（φ56）Mount
4.5-22Aperture
209.8Working Distance
M52×P0.75Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of LS1207A.
- Dimensionsφ63
- Weight471
- Filter ThreadM52×P0.75
- MountV-Mount（φ56）
Key Specifications
| Focal Length | 116 mm |
| Magnification | 0.7-0.85 |
| Mount | V-Mount（φ56） |
| Aperture | 4.5-22 |
| Working Distance | 209.8 |
| Filter Thread | M52×P0.75 |
| Distortion | ﹤0.005% |
| Dimensions | φ63 |
| Weight | 471 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
