LS04080A

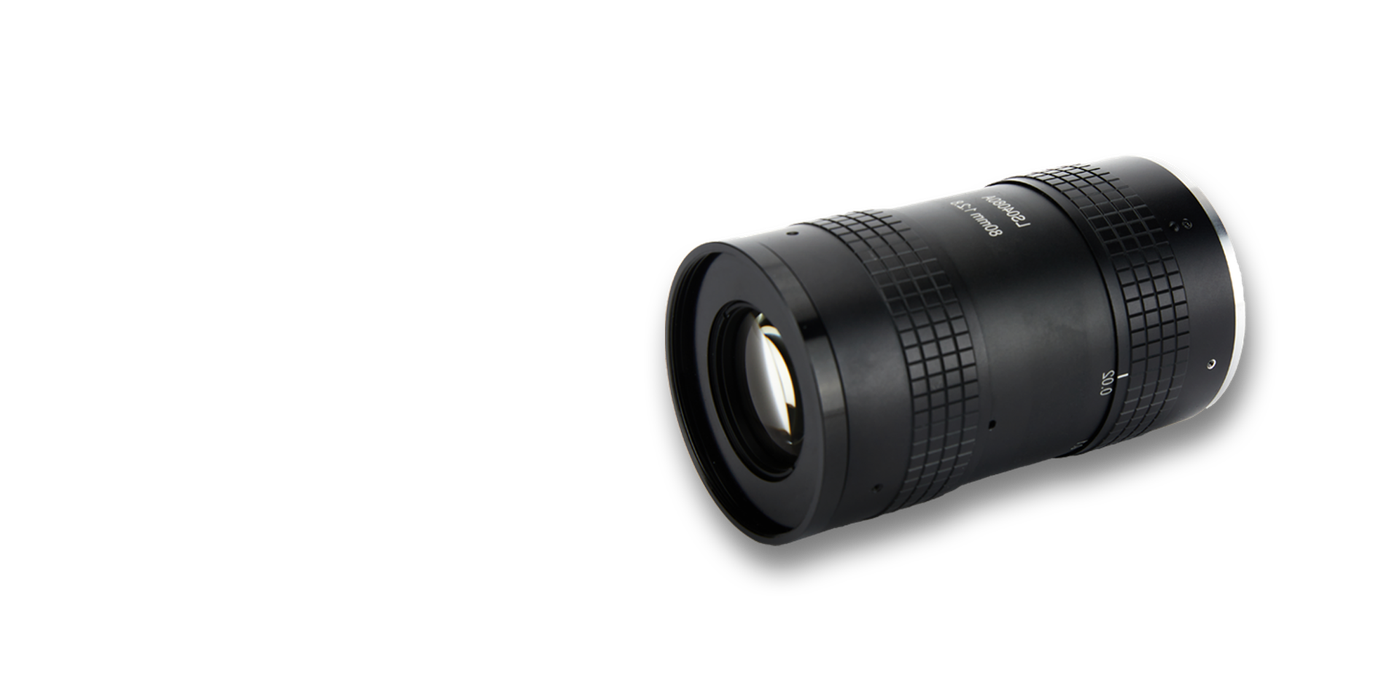

LS04080A 80mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
80 mmFocal Length
0.02-0.46Magnification
M42×P1Mount
2.8-16Aperture
500Working Distance
M58×P0.75Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of LS04080A.
- Dimensionsφ62×108（min）
- Weight546
- Filter ThreadM58×P0.75
- MountM42×P1
Key Specifications
| Focal Length | 80 mm |
| Magnification | 0.02-0.46 |
| Mount | M42×P1 |
| Aperture | 2.8-16 |
| Working Distance | 500 |
| Filter Thread | M58×P0.75 |
| Distortion | ﹤0.2% |
| Dimensions | φ62×108（min） |
| Weight | 546 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
