LS04028A

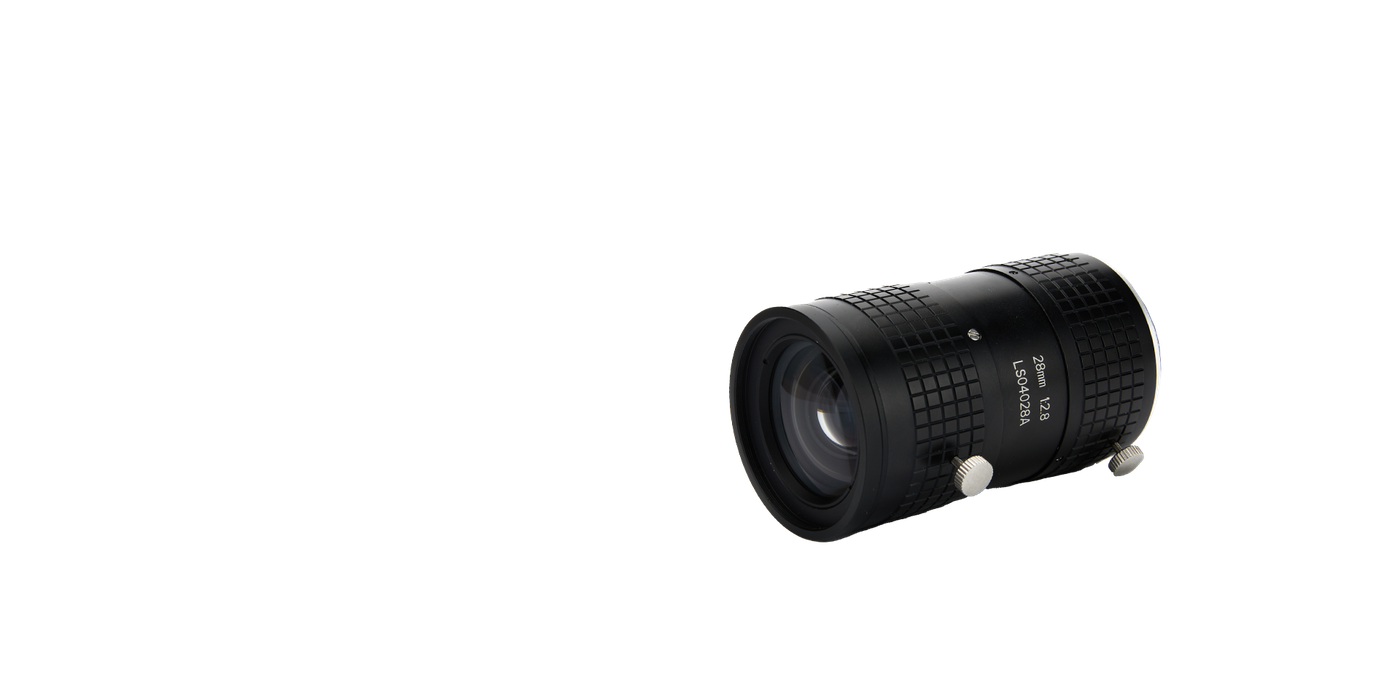

LS04028A 28mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
28 mmFocal Length
0.005-0.17Magnification
M42×P1Mount
2.8-16Aperture
500Working Distance
M49×P0.75Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of LS04028A.
- Dimensionsφ54×92.87（min）
- Weight374
- Filter ThreadM49×P0.75
- MountM42×P1
Key Specifications
| Focal Length | 28 mm |
| Magnification | 0.005-0.17 |
| Mount | M42×P1 |
| Aperture | 2.8-16 |
| Working Distance | 500 |
| Filter Thread | M49×P0.75 |
| Distortion | ﹤0.3% |
| Dimensions | φ54×92.87（min） |
| Weight | 374 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether LS04028A fits, or recommend a better match.
