LH1635A

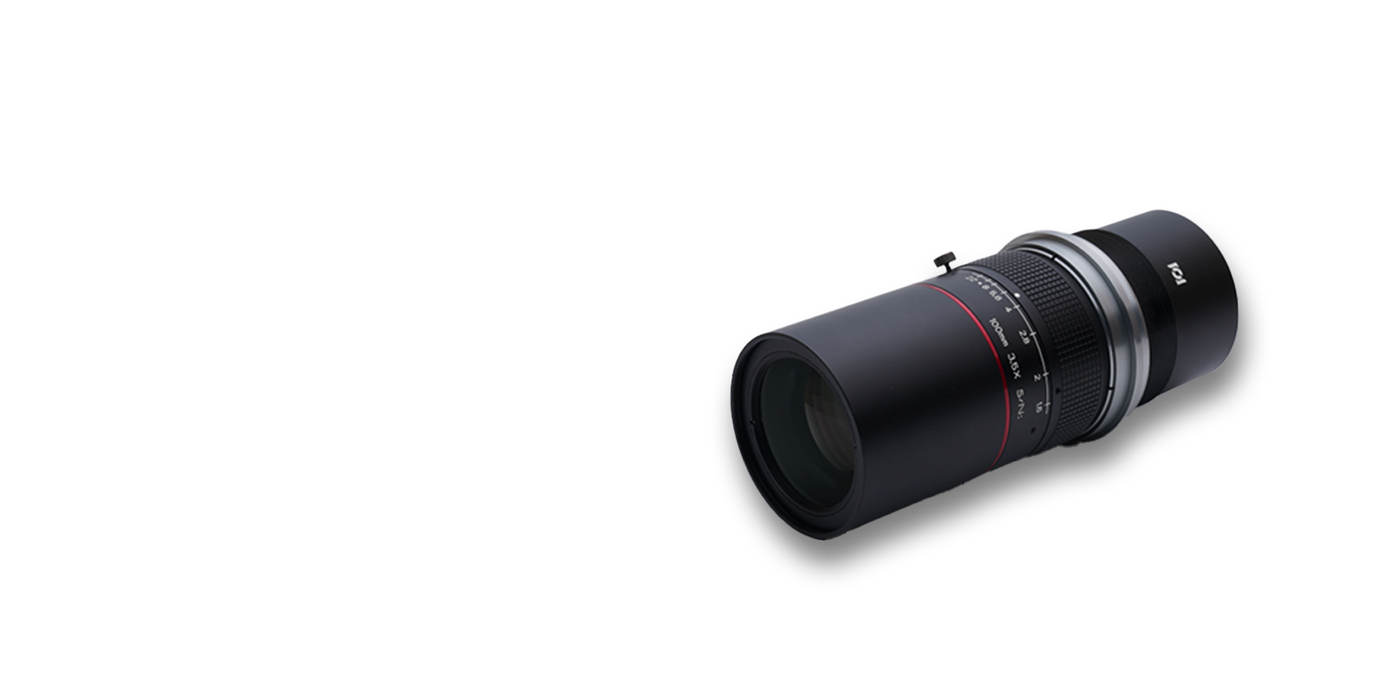

LH1635A 100mm Line Scan Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
100 mmFocal Length
3.35-3.65Magnification
φ82Sensor Size
V-Mount（φ64）Mount
1.6-22Aperture
48.4Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of LH1635A.
- Dimensionsφ74*158
- Filter Thread标准倍率
- MountV-Mount（φ64）
Key Specifications
| Focal Length | 100 mm |
| Magnification | 3.35-3.65 |
| Sensor Size | φ82 |
| Mount | V-Mount（φ64） |
| Aperture | 1.6-22 |
| Working Distance | 48.4 |
| Filter Thread | 标准倍率 |
| Field of View | FOV 26.6° |
| Distortion | ＜0.01% |
| Dimensions | φ74*158 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
