IR2516A

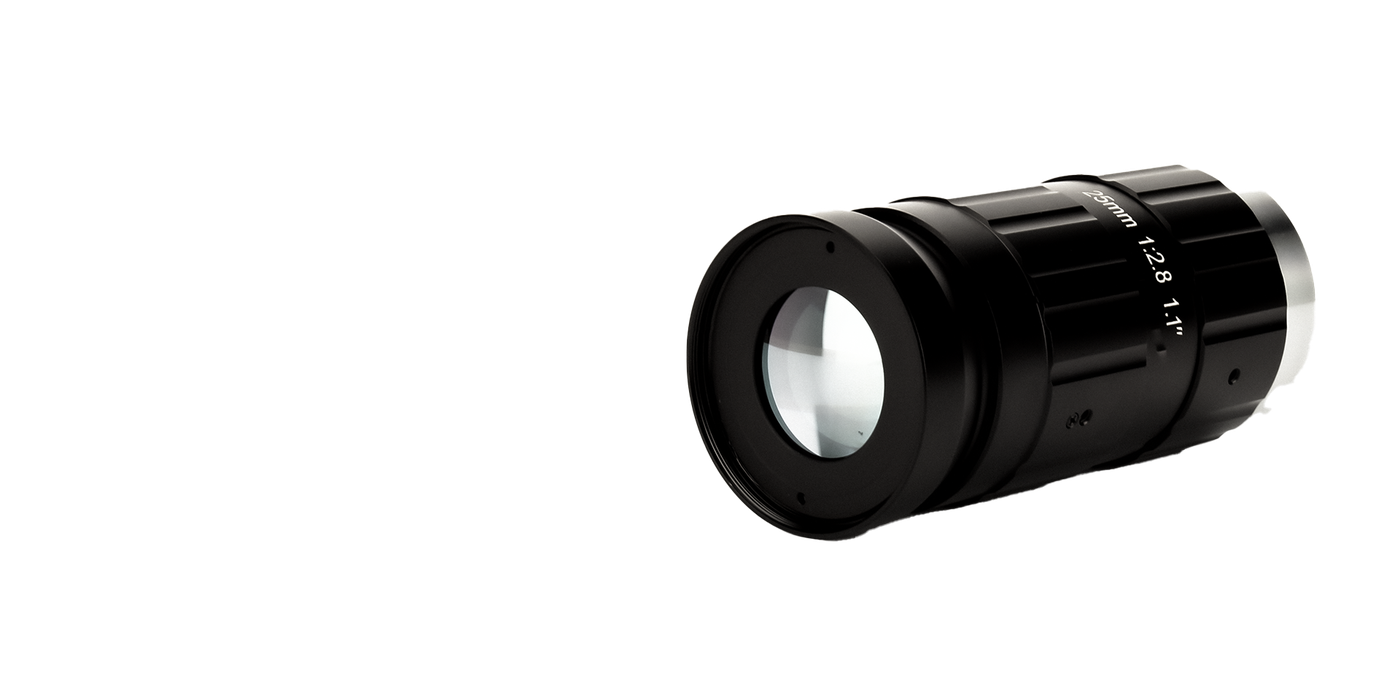

IR2516A 25mm SWIR Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
25 mmFocal Length
0.005X-0.221XMagnification
1.1”Sensor Size
C-MountMount
2.8-22Aperture
0.1mMOD
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of IR2516A.
- Dimensionsφ37×（78-82）
- Weight180
- MountC-Mount
Key Specifications
| Focal Length | 25 mm |
| Magnification | 0.005X-0.221X |
| Sensor Size | 1.1” |
| Mount | C-Mount |
| Aperture | 2.8-22 |
| MOD | 0.1m |
| Distortion | ＜0.1% |
| Dimensions | φ37×（78-82） |
| Weight | 180 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether IR2516A fits, or recommend a better match.
