HN-P-5028-100M-F

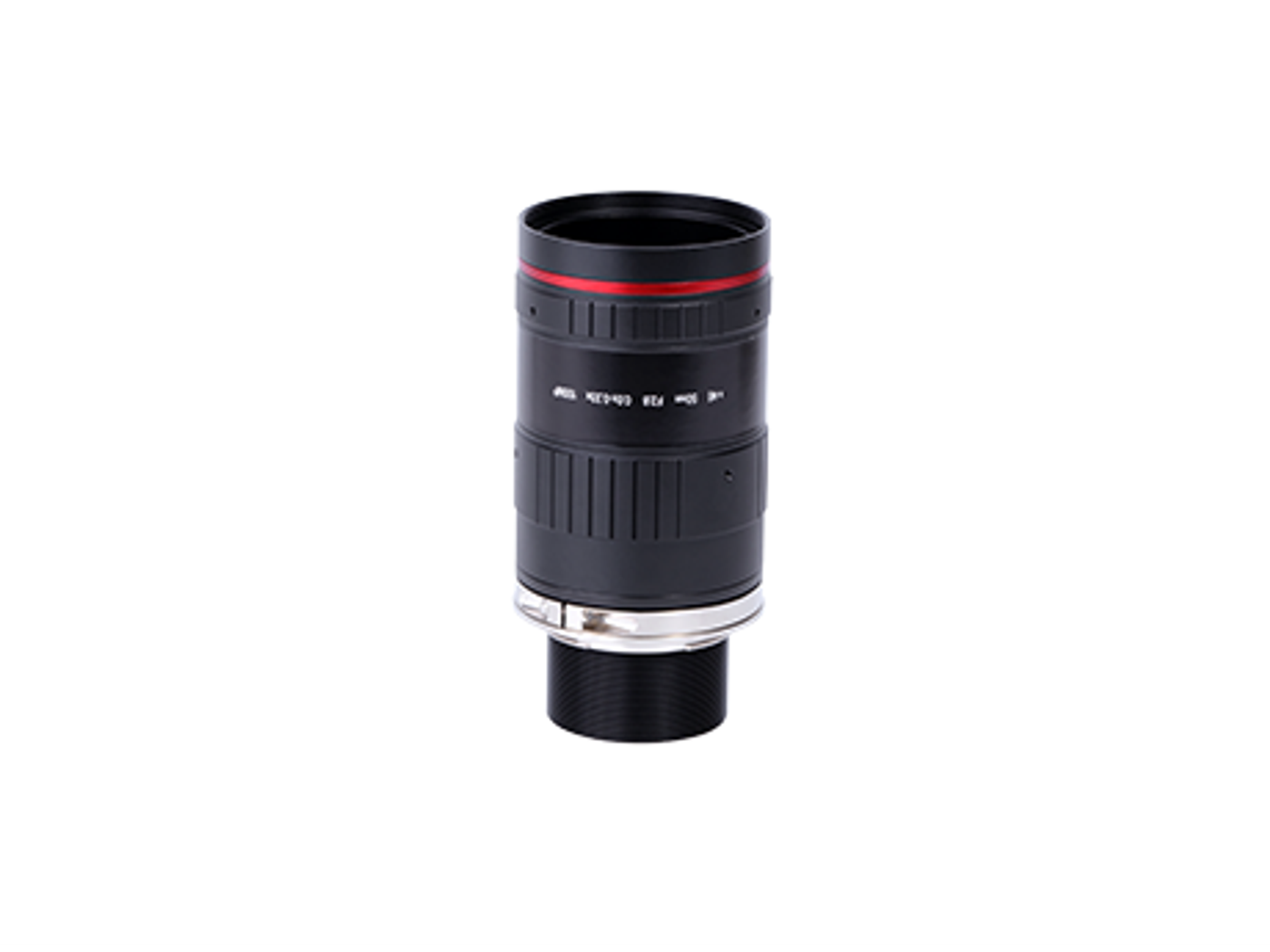

Daheng HN-P-5028-100M-F 50mm 100 MP Large Format Lens
High-resolution optics for 1.1", 1.2", 4/3" sensors and macro inspection.
50 mmFocal Length
Φ46 mmSensor Size
100 MPResolution
Φ46 mmImage Circle
F-mountMount
F2.8 - F22Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of HN-P-5028-100M-F.
- DimensionsΦ58 × 90.88 mm (D × L)
- Filter ThreadM55 × 0.75
- MountF-mount
Key features
- 50 mm focal length
- Φ46 mm image circle
- 100 MP design
- F2.8 maximum aperture
- Very low optical distortion
- Compact barrel
Key Specifications
| Focal Length | 50 mm |
| Sensor Size | Φ46 mm |
| Resolution | 100 MP |
| Image Circle | Φ46 mm |
| Mount | F-mount |
| Aperture | F2.8 - F22 |
| Working Distance | 150 mm - ∞ |
| MOD | 150 mm |
| Filter Thread | M55 × 0.75 |
| Field of View | 38.12° × 25.83° (H × V) |
| Distortion | -0.35% |
| Focus Range | 0.15 m - ∞ |
| Pixel Size | 3.1 µm |
| Iris | Manual |
| Focus | Manual |
| Dimensions | Φ58 × 90.88 mm (D × L) |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether HN-P-5028-100M-F fits, or recommend a better match.
