G-CA4021A

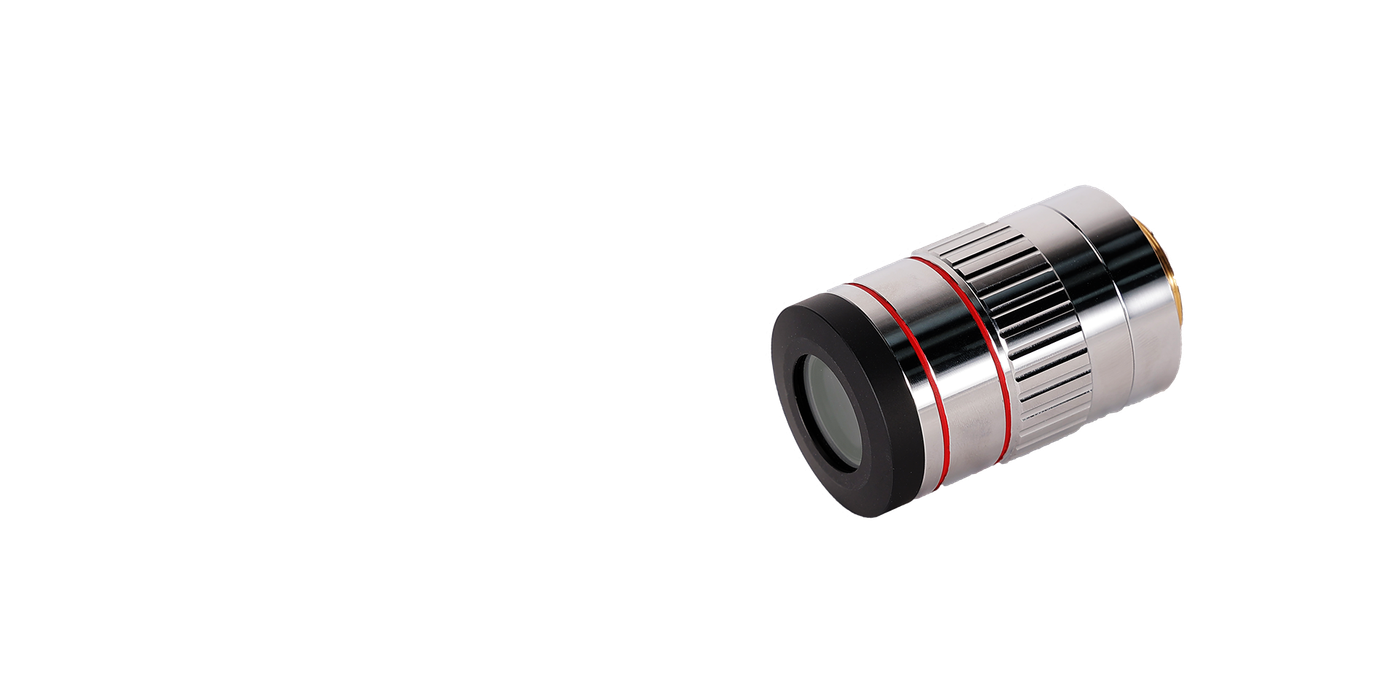

G-CA4021A 40mm Microscope Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
40 mmFocal Length
5Magnification
1.4"Sensor Size
M26×P0.706Mount
1.4"FOV(H×V) 3.8×2.6; 1.1"FOV(H×V) 2.82×2.12; 2/3"FOV(H×V) 1.76×1.32Field of View
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of G-CA4021A.
- MountM26×P0.706
Key Specifications
| Focal Length | 40 mm |
| Magnification | 5 |
| Sensor Size | 1.4" |
| Mount | M26×P0.706 |
| Field of View | 1.4"FOV(H×V) 3.8×2.6; 1.1"FOV(H×V) 2.82×2.12; 2/3"FOV(H×V) 1.76×1.32 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
