FS2505A

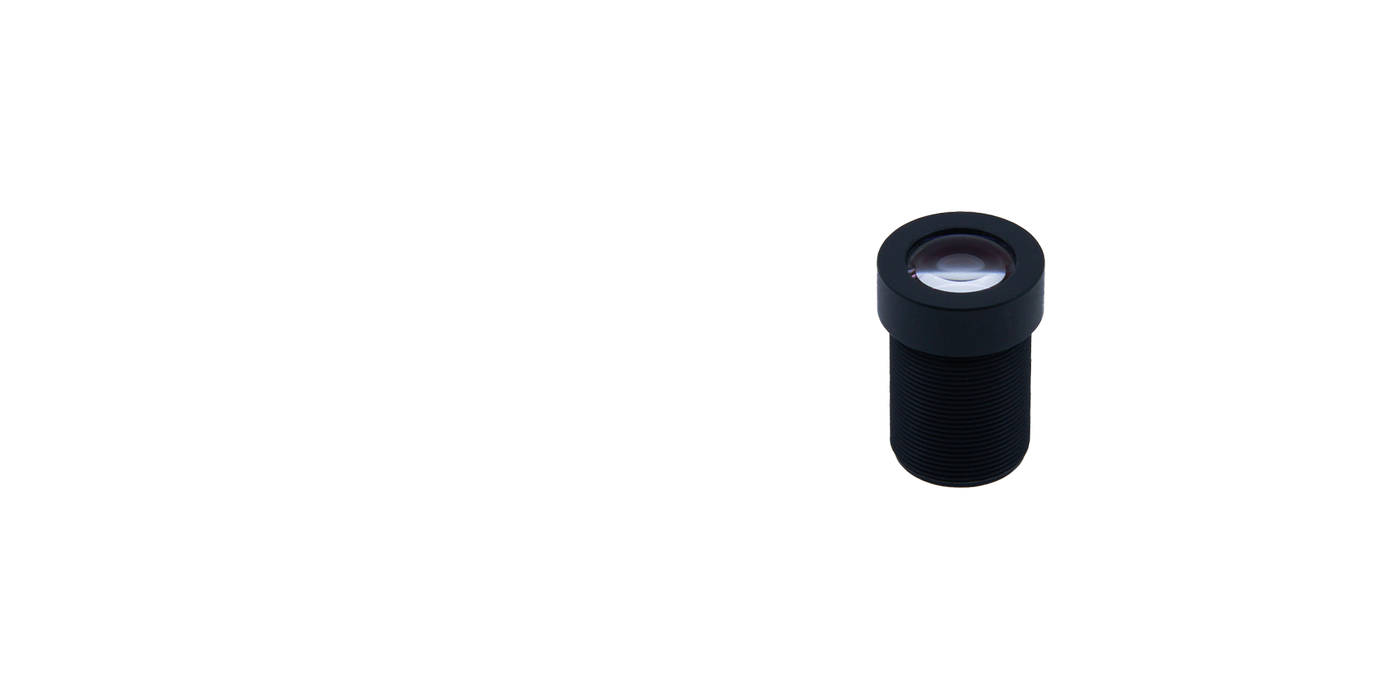

FS2505A 25mm Machine Vision Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
25 mmFocal Length
1/1.8”Sensor Size
M12×P0.5Mount
2.8Aperture
0.2m、0.14XMOD
1/1.8"视场角Angle 15.6°×11.5°; 1/3"视场角Angle 10.5°×7.8°Field of View
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of FS2505A.
- Dimensionsφ14*19.495
- Weight4.8
- MountM12×P0.5
Key Specifications
| Focal Length | 25 mm |
| Sensor Size | 1/1.8” |
| Mount | M12×P0.5 |
| Aperture | 2.8 |
| MOD | 0.2m、0.14X |
| Field of View | 1/1.8"视场角Angle 15.6°×11.5°; 1/3"视场角Angle 10.5°×7.8° |
| Distortion | ＜0.05% |
| Dimensions | φ14*19.495 |
| Weight | 4.8 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether FS2505A fits, or recommend a better match.
