FS0805A

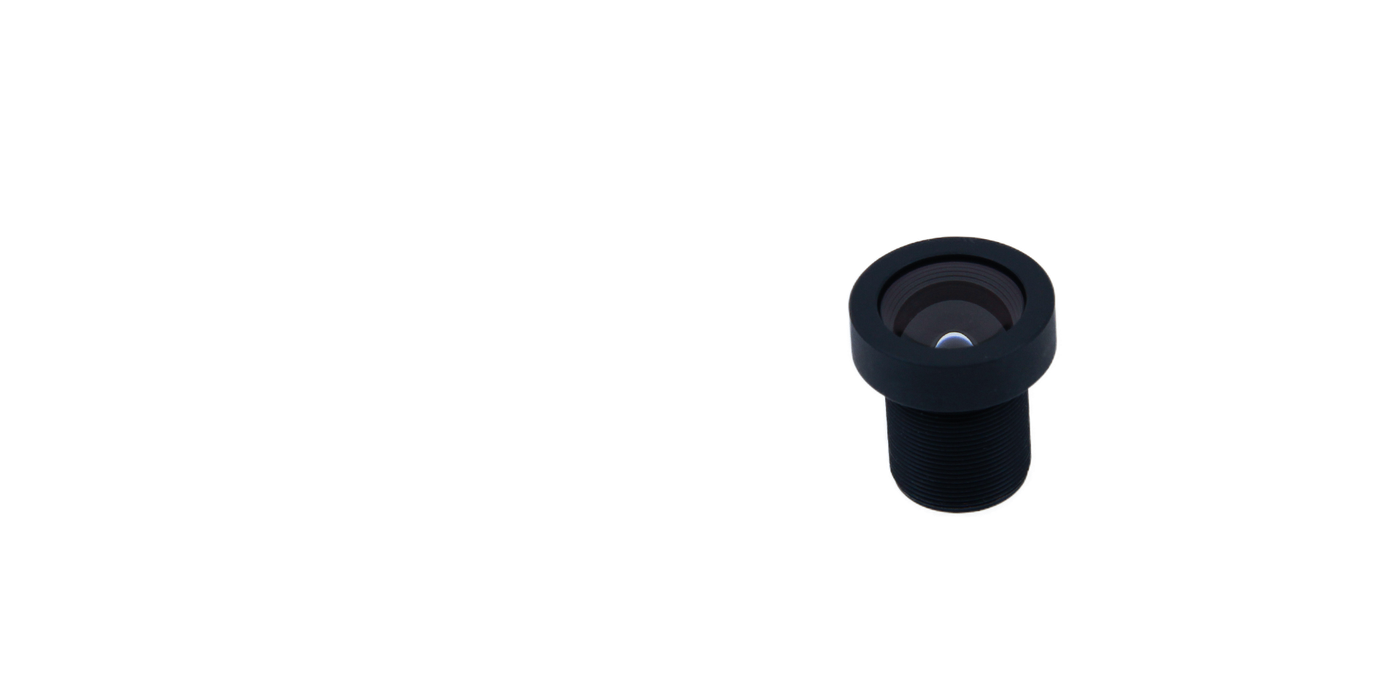

FS0805A 8mm Machine Vision Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
8 mmFocal Length
1/1.8”Sensor Size
M12×P0.5Mount
2.8Aperture
0.12m、0.067XMOD
1/1.8"视场角Angle 47°×35.6°; 1/3"视场角Angle 32.3°×24.6°Field of View
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of FS0805A.
- Dimensionsφ17*18.336
- Weight6.2
- MountM12×P0.5
Key Specifications
| Focal Length | 8 mm |
| Sensor Size | 1/1.8” |
| Mount | M12×P0.5 |
| Aperture | 2.8 |
| MOD | 0.12m、0.067X |
| Field of View | 1/1.8"视场角Angle 47°×35.6°; 1/3"视场角Angle 32.3°×24.6° |
| Distortion | ＜0.3% |
| Dimensions | φ17*18.336 |
| Weight | 6.2 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
