FS0305A

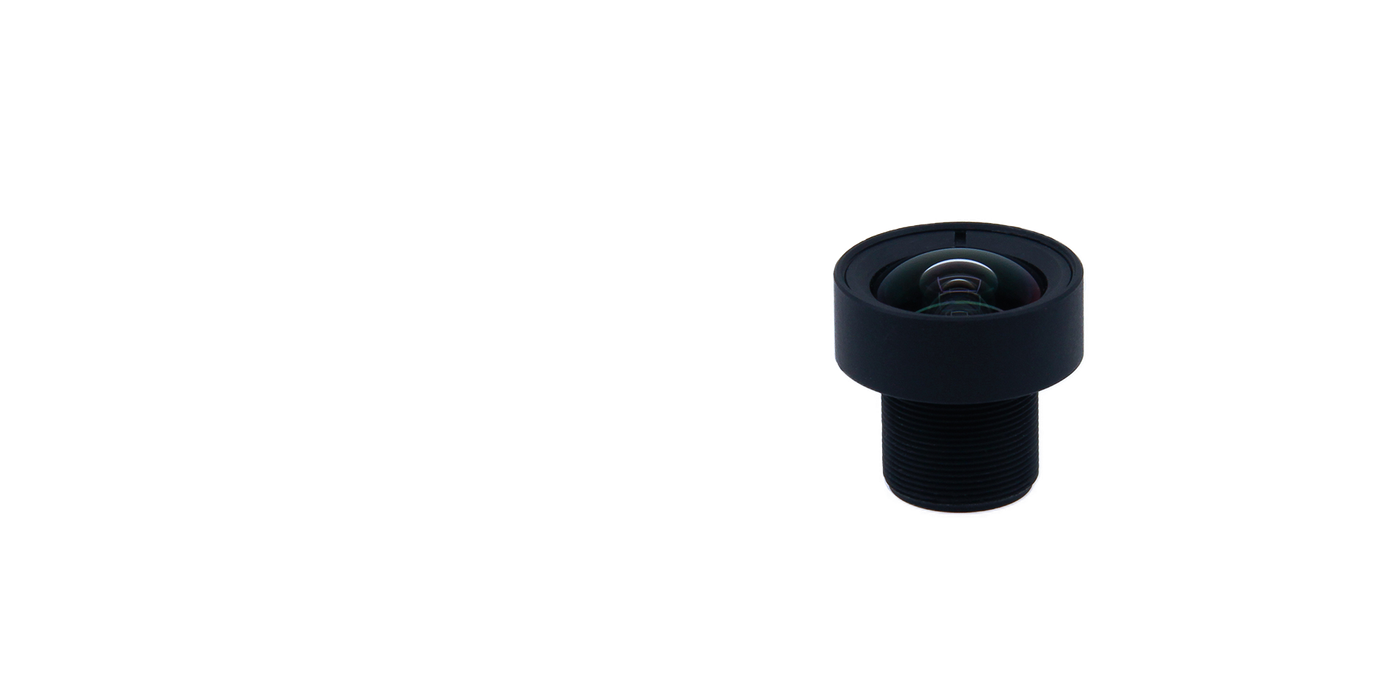

FS0305A 3.37mm Machine Vision Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
3.37 mmFocal Length
1/2”Sensor Size
M12×P0.5Mount
2.8Aperture
0.1m、0.032XMOD
1/1.8"视场角Angle 86°×70°（1/2"); 1/3"视场角Angle 70°×50°Field of View
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of FS0305A.
- Dimensionsφ18.8*17.65
- Weight7.7
- MountM12×P0.5
Key Specifications
| Focal Length | 3.37 mm |
| Sensor Size | 1/2” |
| Mount | M12×P0.5 |
| Aperture | 2.8 |
| MOD | 0.1m、0.032X |
| Field of View | 1/1.8"视场角Angle 86°×70°（1/2"); 1/3"视场角Angle 70°×50° |
| Distortion | ＜1% |
| Dimensions | φ18.8*17.65 |
| Weight | 7.7 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
