FA3516SM

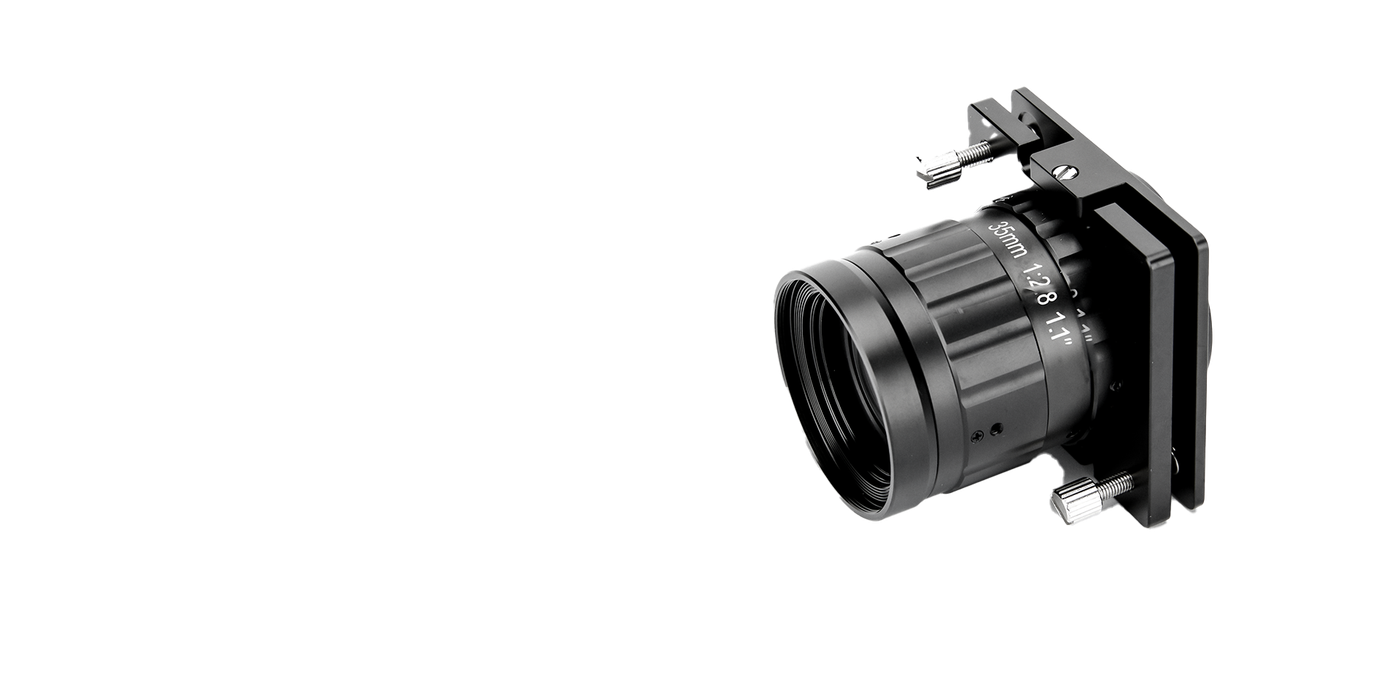

FA3516SM 35mm Machine Vision Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
35 mmFocal Length
1.1"Sensor Size
SM-Mount（C-Mount，φ27.9）Mount
2.8-22Aperture
0.2m、0.1805XMOD
M35.5×P0.5Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of FA3516SM.
- Dimensionsφ68x53
- Weight134
- Filter ThreadM35.5×P0.5
- MountSM-Mount（C-Mount，φ27.9）
Key Specifications
| Focal Length | 35 mm |
| Sensor Size | 1.1" |
| Mount | SM-Mount（C-Mount，φ27.9） |
| Aperture | 2.8-22 |
| MOD | 0.2m、0.1805X |
| Filter Thread | M35.5×P0.5 |
| Field of View | 1.1"视场角Angle 22.6°x17°; 1"视场角Angle 20.6°x15.45°; 2/3"视场角Angle 14.3°x10.7° |
| Distortion | ＜0.02% |
| Dimensions | φ68x53 |
| Weight | 134 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether FA3516SM fits, or recommend a better match.
