FA1616SM

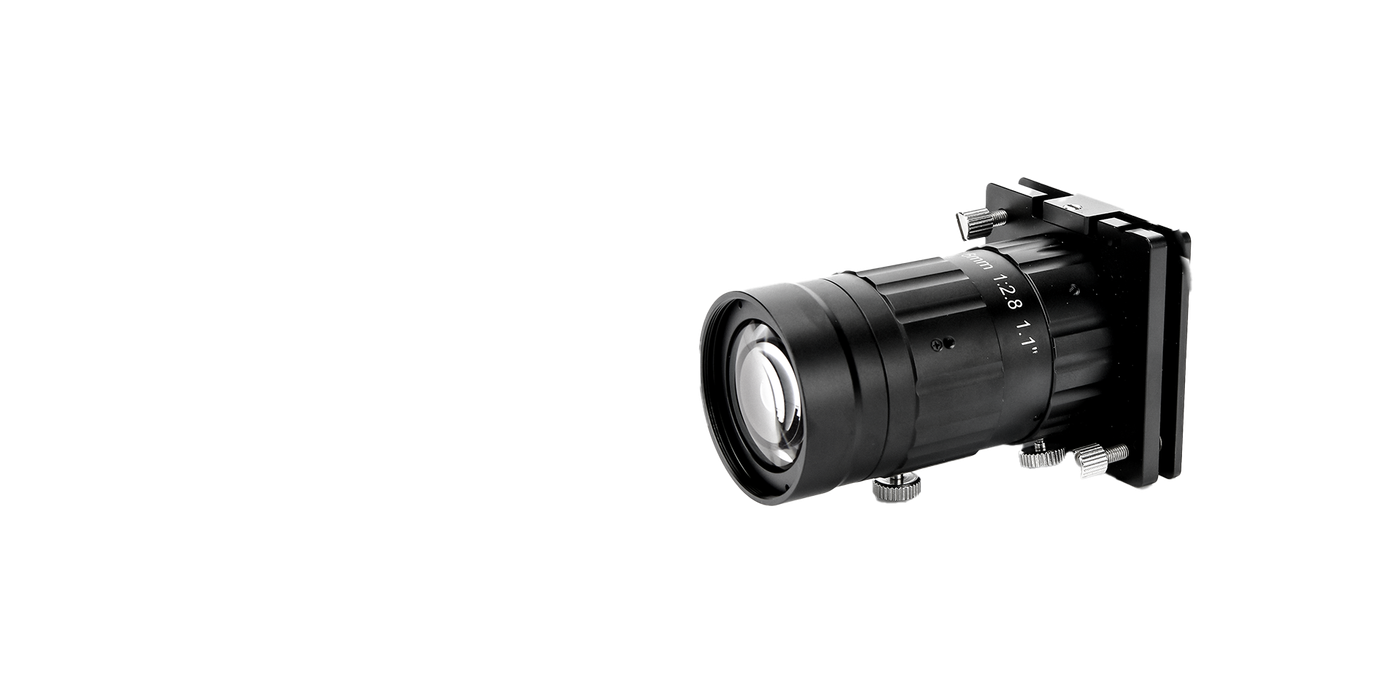

FA1616SM 16mm Machine Vision Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
16 mmFocal Length
1.1"Sensor Size
SM-Mount（C-Mount，φ27.9）Mount
2.8-22Aperture
0.1m、0.148XMOD
M35.5×P0.5Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of FA1616SM.
- Dimensionsφ68x84
- Weight220
- Filter ThreadM35.5×P0.5
- MountSM-Mount（C-Mount，φ27.9）
Key Specifications
| Focal Length | 16 mm |
| Sensor Size | 1.1" |
| Mount | SM-Mount（C-Mount，φ27.9） |
| Aperture | 2.8-22 |
| MOD | 0.1m、0.148X |
| Filter Thread | M35.5×P0.5 |
| Field of View | 1.1"视场角Angle 46.3°x36°; 1"视场角Angle 43.6°x33.4°; 2/3"视场角Angle 30.8°x23.3° |
| Dimensions | φ68x84 |
| Weight | 220 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether FA1616SM fits, or recommend a better match.
