FA1225SM

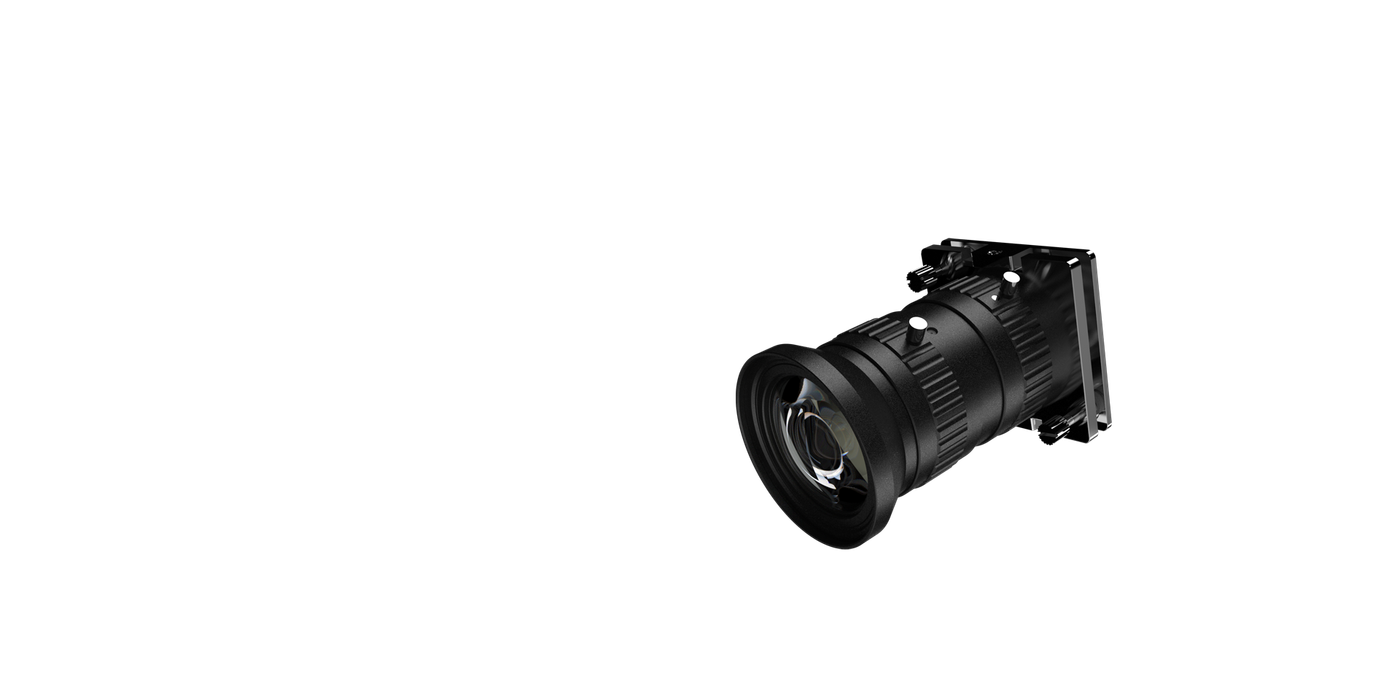

FA1225SM 12mm Machine Vision Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
12 mmFocal Length
1.1"Sensor Size
SM-Mount（CS-Mount，φ27.9）Mount
2.8-22Aperture
0.1m、0.1055XMOD
1.1"视场角Angle 60.66°x46.5°; 1"视场角Angle 50°x50°; 2/3"视场角Angle 38.6°x33°Field of View
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of FA1225SM.
- Dimensionsφ68x83.73
- Weight258
- MountSM-Mount（CS-Mount，φ27.9）
Key Specifications
| Focal Length | 12 mm |
| Sensor Size | 1.1" |
| Mount | SM-Mount（CS-Mount，φ27.9） |
| Aperture | 2.8-22 |
| MOD | 0.1m、0.1055X |
| Field of View | 1.1"视场角Angle 60.66°x46.5°; 1"视场角Angle 50°x50°; 2/3"视场角Angle 38.6°x33° |
| Distortion | ＜0.3% |
| Dimensions | φ68x83.73 |
| Weight | 258 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
