ELS-120/5.6V-1.0X

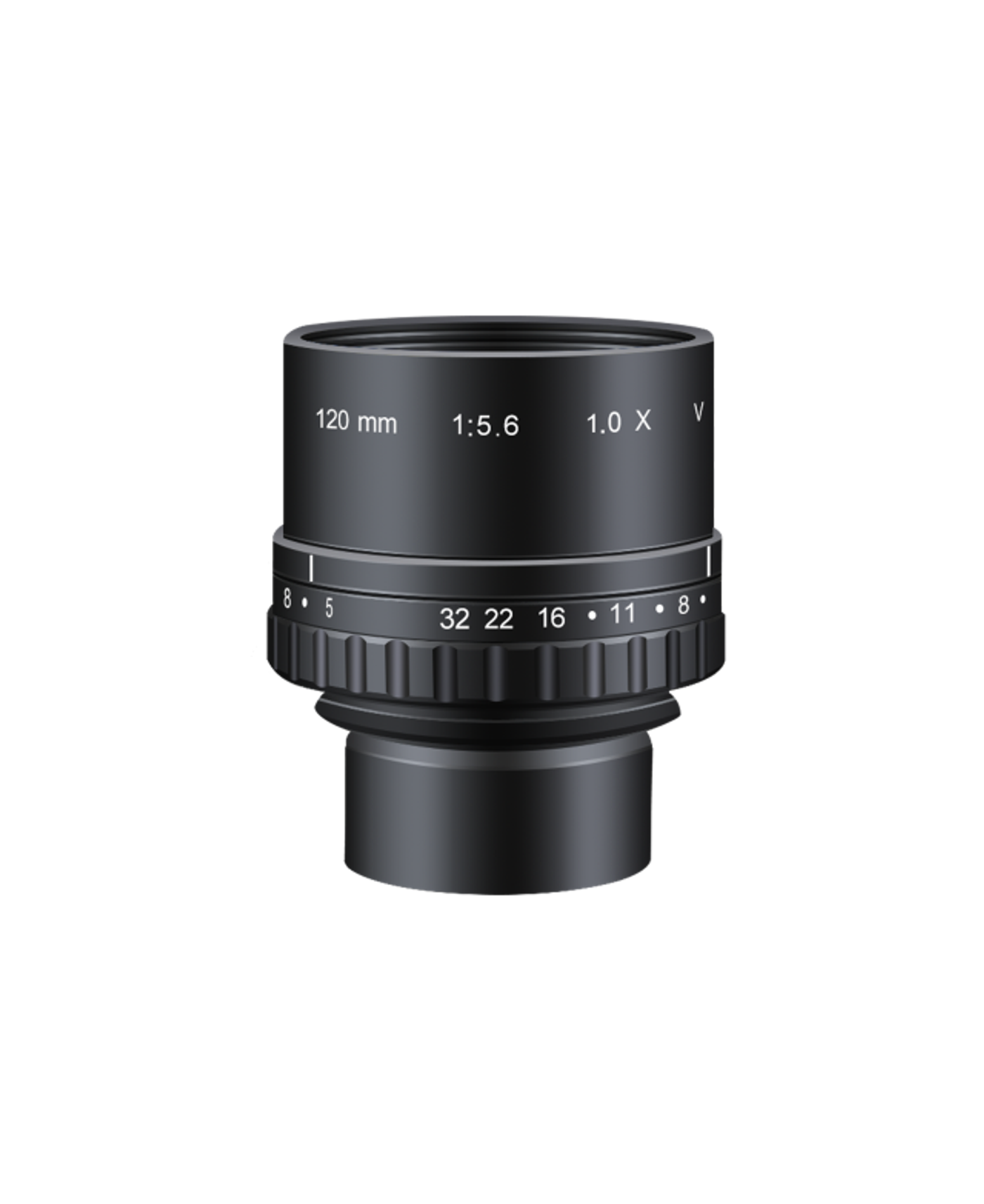

ELS-120/5.6V-1.0X 120mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
120 mmFocal Length
90mmSensor Size
40lp/mmResolving Power
M40.5×0.5Filter Thread
148gWeight
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of ELS-120/5.6V-1.0X.
- Weight148g
- Filter ThreadM40.5×0.5
Key Specifications
| Focal Length | 120 mm |
| Sensor Size | 90mm |
| Resolving Power | 40lp/mm |
| Filter Thread | M40.5×0.5 |
| Weight | 148g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether ELS-120/5.6V-1.0X fits, or recommend a better match.
