C-VI3502A

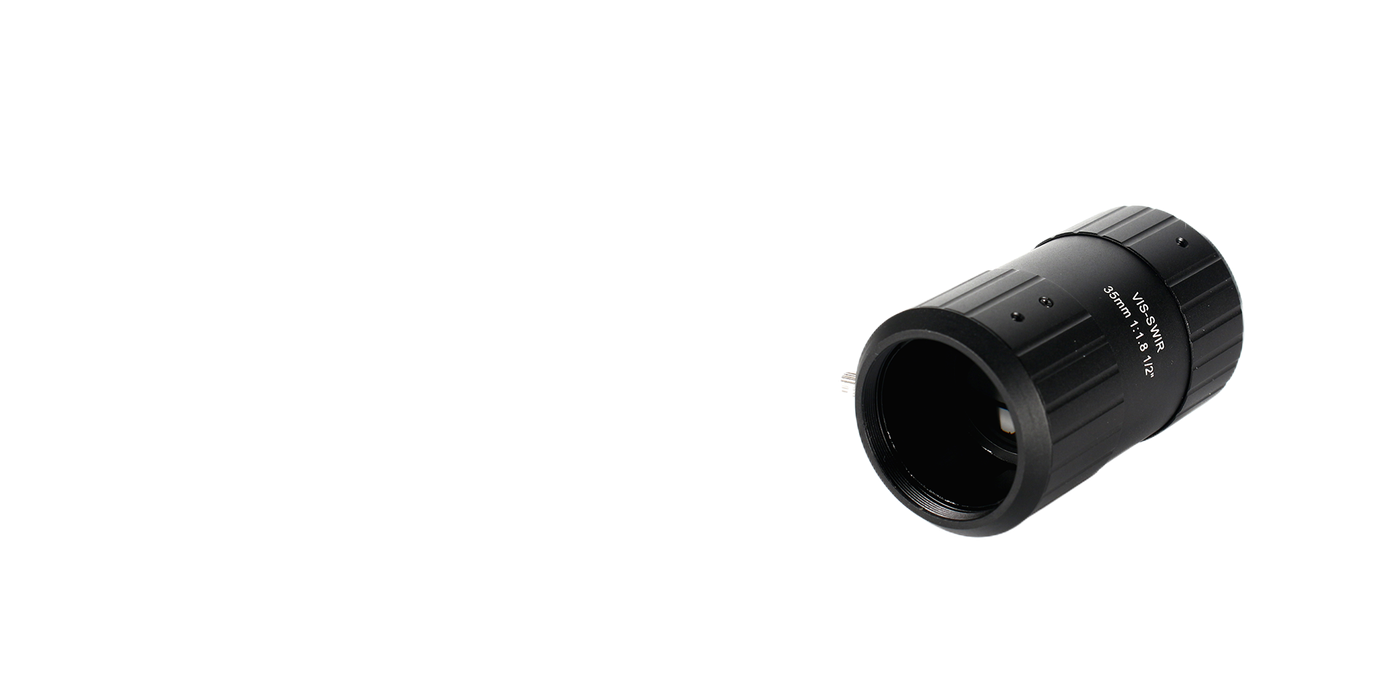

C-VI3502A 35mm SWIR Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
35 mmFocal Length
1/2”Sensor Size
C-MountMount
1.8-16Aperture
0.1m、0.372xMOD
M28.5×P0.5Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of C-VI3502A.
- Dimensionsφ36×59.9
- Filter ThreadM28.5×P0.5
- MountC-Mount
Key Specifications
| Focal Length | 35 mm |
| Sensor Size | 1/2” |
| Mount | C-Mount |
| Aperture | 1.8-16 |
| MOD | 0.1m、0.372x |
| Filter Thread | M28.5×P0.5 |
| Field of View | 1/2"视场角Angle 7.51°×5.94°; 1/4"视场角Angle 3.37°×2.59° |
| Distortion | ＜0.14% |
| Dimensions | φ36×59.9 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether C-VI3502A fits, or recommend a better match.
