SS-MVL-1212-12M-C1.1

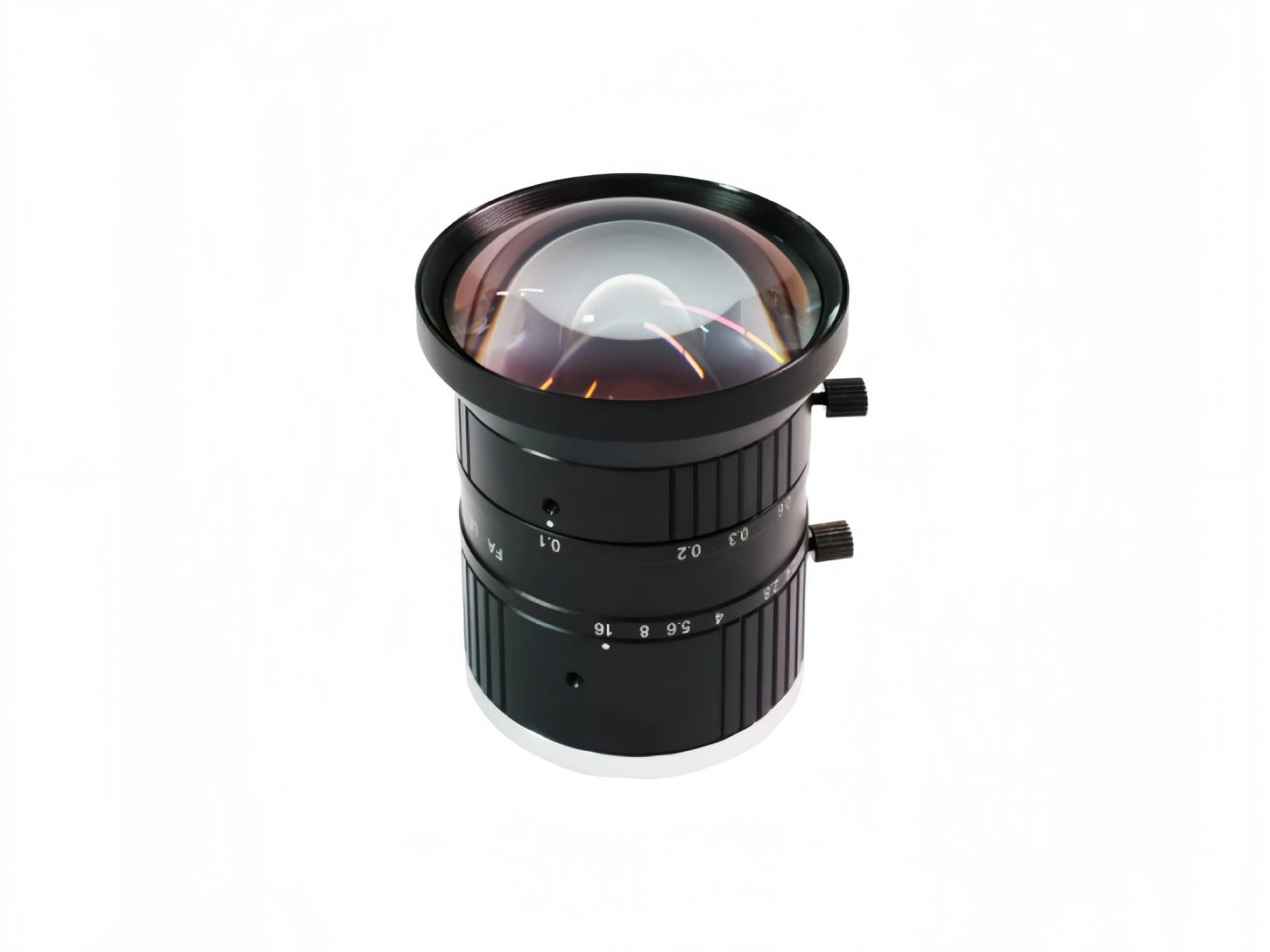

12MP 1.1" 12mm Fixed Focus Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
12 mm ±5%Focal Length
1.1"Sensor Size
12 MPResolution
C-MountMount
F2.4 - F16Aperture
300 mm (basic)Working Distance
Overview
The SS-MVL-1212-12M-C1.1 is a 12 mm fixed focal length lens for 1.1" sensors up to 12 MP. With a C-mount barrel, a manual iris from F2.4 to F16 and optical distortion below 0.3%, it suits inline inspection, positioning and code reading, where the field of view has to stay consistent across the whole image.
At a 300 mm working distance the field of view is 76.1 x 62.3 x 55.3 degrees. The 4 µm pixel size matches 12 MP 1.1" sensors, focus runs from 0.1 m to infinity, and the barrel measures 50.0 mm diameter x 66.96 mm long and weighs about 79 g, with an 18.5 mm back focal length and a 17.526 mm flange distance.
Samples are available before volume orders, with price and lead time quoted against your target quantity. If your application needs a different focal length, filter thread or mounting arrangement, send us the sensor, working distance and field of view and we will confirm the closest standard option or quote a custom build.
Key features
- Ultra-low optical distortion
- Miniaturised structure
- F=12mm for 1.1" / 1" sensors
- 12 megapixel design
Key Specifications
| Focal Length | 12 mm ±5% |
| Sensor Size | 1.1" |
| Resolution | 12 MP |
| Mount | C-Mount |
| Aperture | F2.4 - F16 |
| Working Distance | 300 mm (basic) |
| Filter Thread | None |
| Field of View | 76.12° x 62.33° x 55.33° |
| Distortion | Optical -0.28% / TV 0.39% |
| Focus Range | 0.1 m - infinity |
| Pixel Size | 4 µm |
| Back Focal Length | 18.5 ±0.2 mm |
| Flange Distance | 17.526 ±0.2 mm |
| Iris | Manual |
| Focus | Manual |
| Dimensions | Ø50.00 x 66.96 mm |
| Weight | approx. 79 g |
Optical Performance
MTF curve
(supplied with datasheet)
(supplied with datasheet)
MTF
Modulation transfer function across the image field.
Distortion chart
(supplied with datasheet)
(supplied with datasheet)
Distortion
TV distortion and relative illumination data.
Dimensions

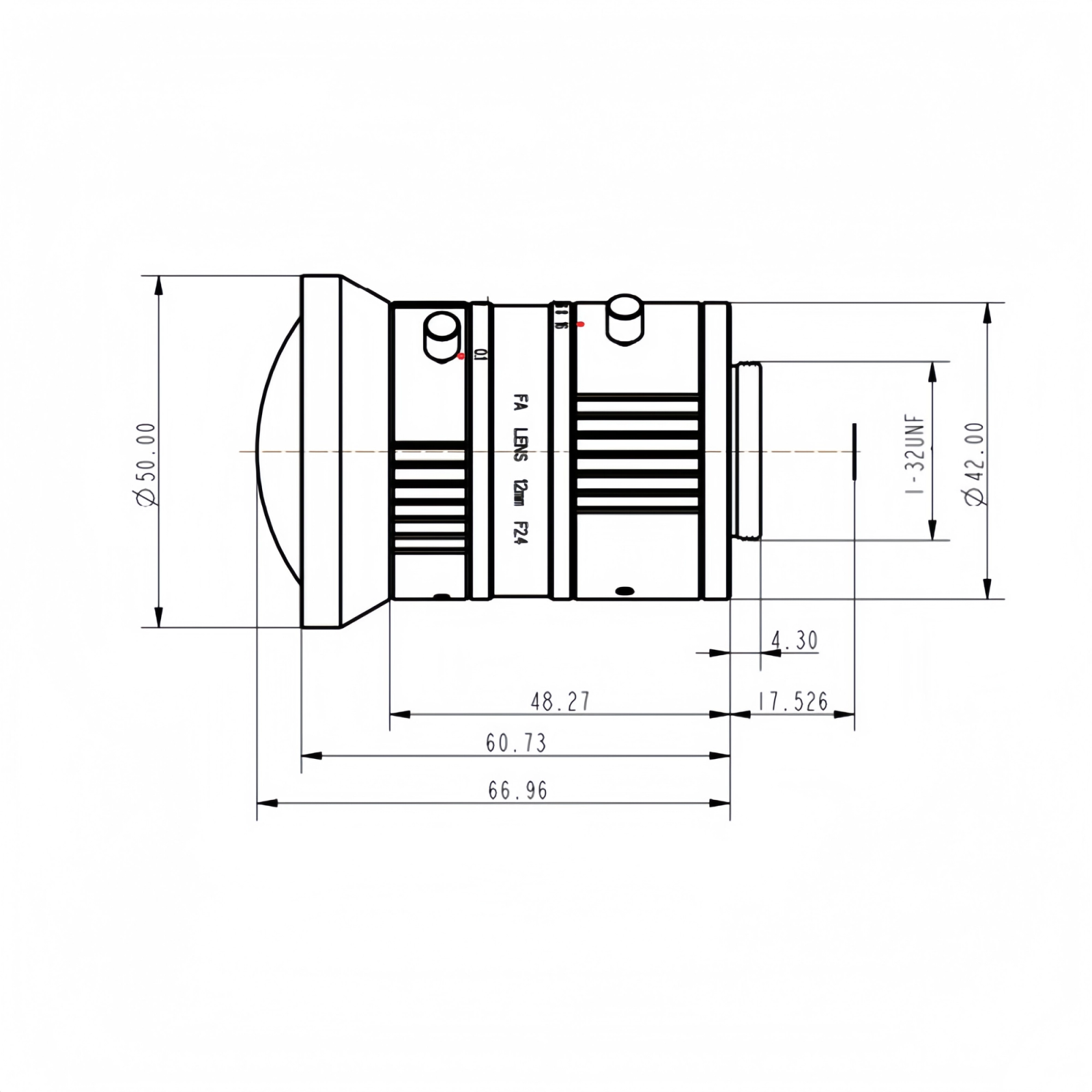

Mechanical drawing — click to open full size.
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Commercial terms
| OEM / ODM | Available |
| Private label | Available |
